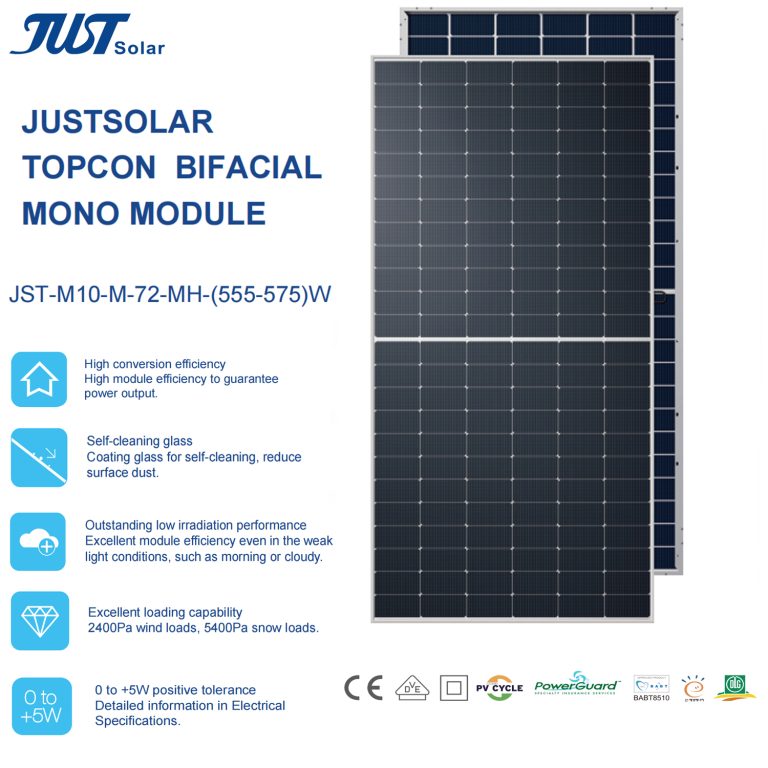

JUSTSOLAR Topcon Bifacial Mono Module Solar Panel(JST-M10-M-72-MH-(555-575)W)

High conversion efficiency
High module efficiency to guarantee
power output.

Outstanding low irradiation performance
Excellent module efficiency even in the weak
light conditions, such as morning or cloudy.

Excellent loading capability
2400Pa wind loads, 5400Pa snow loads.

0 to +5W positive tolerance
Detailed information in Electrical
Specifications

Product Description

Electrical Parameters	STC: AM1.5 1000W/m2 25℃ NOCT: AM1.5 800W/m2 20℃ 1m/s
Model Type	555		560		565		570		575
	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT
Rated maximum power Pmax (W)	555	417	560	421	565	425	570	429	575	434
Open circuit voltage Voc (V)	50.48V	47.93V	50.68V	48.14V	50.88V	48.33V	51.08V	48.52V	51.28V	48.71V
Short circuit current Isc (A)	14.08A	11.37A	14.14A	11.42A	14.20A	11.45A	14.26A	11.50A	14.32A	11.55A
Maximum power voltage Vmp (V）	41.73V	39.27V	41.92V	39.38V	42.11V	39.54V	42.26V	39.65V	42.45V	39.77V
Maximum power current Imp (A)	13.30A	10.62A	13.36A	10.69A	13.42A	10.75A	13.49A	10.82A	13.55A	10.91A
Module efficiency (%)	21.3		21.5		21.7		21.9		22.1
Bifacial gain 10%	555		560		565		570		575
Rated maximum power Pmax (W)	611W		616W		622W		627W		634W
Open circuit voltage Voc (V)	50.48V		50.68V		50.88V		51.08V		51.28V
Short circuit current Isc (A)	15.49A		15.55A		15.62A		15.69A		15.75A
Maximum power voltage Vmp (V)	41.73V		41.92V		42.11V		42.26V		42.45V
Maximum power current Imp (A)	14.63A		14.70A		14.76A		14.84A		14.91A
Temperature Coefficient			Operating Conditions
Temperature coefficient α_Isc	+0.046%/℃		Operating temperature		-40℃~+70℃	Nominal operating cell temperature			45±2℃
Temperature coefficient β_Voc	+0.047%/℃		Pmax, Voc, Isc tolerance		±3%	Front side Max. static test loading			45±3℃
Temperature coefficient γ_Pmax	+0.048%/℃		Power selection		0~+5W	Rear side Max. static test loading			45±4℃
			Maximum system voltage		1500V DC	Bifaciality			45±5℃
			Maximum series fuse rating		30A	Safety Class			45±6℃
