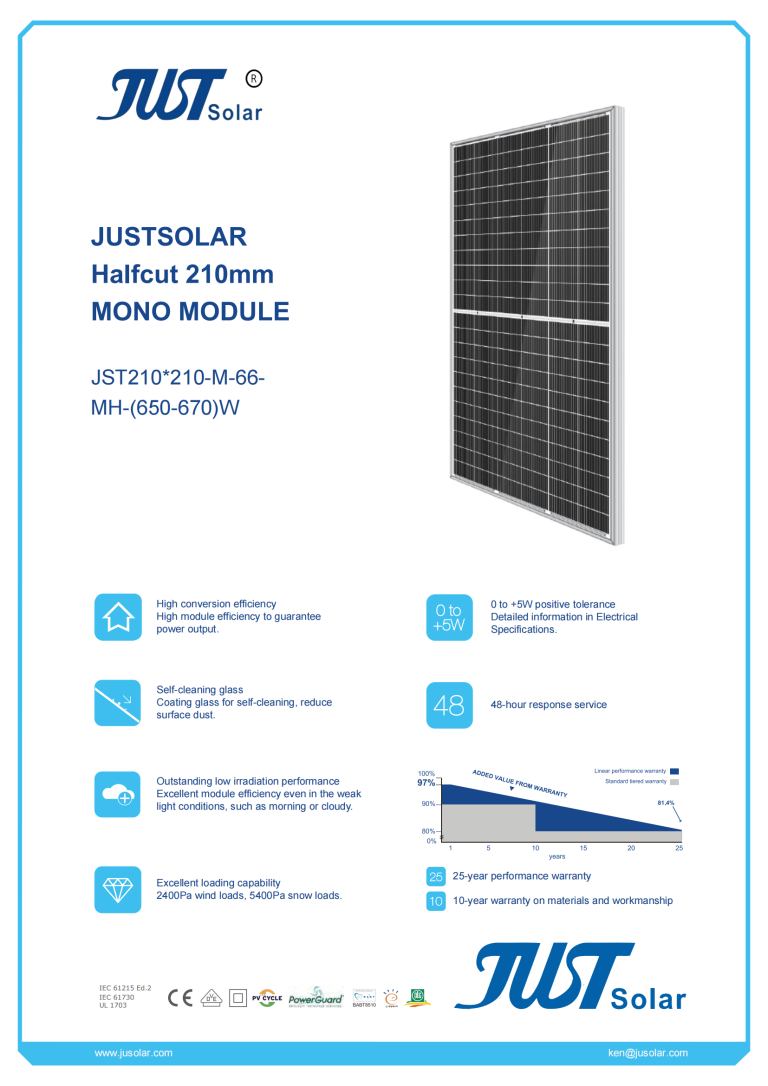

JST210*210-M-66- MH-(650-665)W

JST210*210-M-66- MH-(650-665)W

High conversion efficiency
High module efficiency to guarantee
power output.

Self-cleaning glass
Coating glass for self-cleaning, reduce
surface dust.

Outstanding low irradiation performance
Excellent module efficiency even in the weak
light conditions, such as morning or cloudy.

Excellent loading capability
2400Pa wind loads, 5400Pa snow loads.

0 to +5W positive tolerance
Detailed information in Electrical

48-hour response service

Product Description

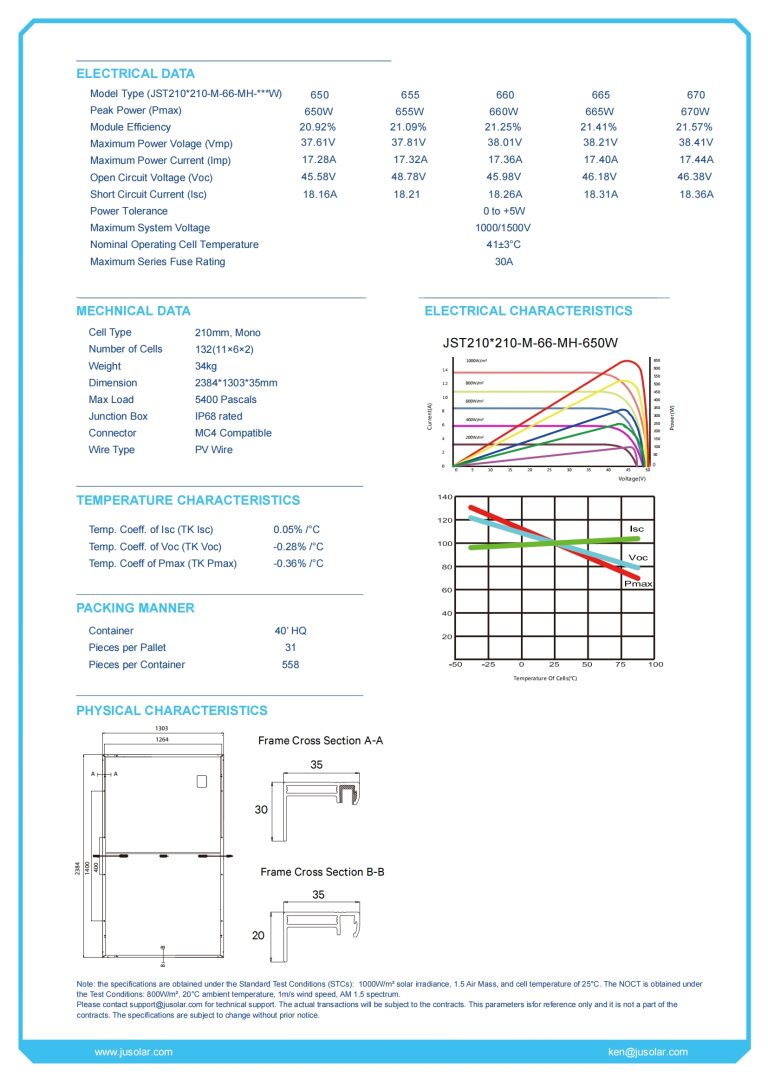

Model Type JST-G12-M-66-MH-665W 650 655 660 665
Peak Power (Pmax) 650W 655W 660W 665W
Module Efficiency 20.92% 21.09% 21.25% 21.41%
Maximum Power Volage (Vmp) 37.61V 37.81V 38.01V 38.21V
Maximum Power Current (Imp) 17.28A 17.32A 17.36A 17.40A
Open Circuit Voltage (Voc) 45.58V 48.78V 45.98V 46.18V
Short Circuit Current (Isc) 18.16A 18.21A 18.26A 18.31A
Power Tolerance 0 to +5W
Maximum System Voltage 1500V
Nominal Operating Cell Temperature 41±3°C
Maximum Series Fuse Rating 30A


Cell Type 210mm, Mono
Number of Cells 132(11×6×2)
Weight 34kg
Dimension 2384*1303*35mm
Max Load 5400 Pascals
Junction Box IP68 rated
Connector MC4 Compatible
Wire Type PV Wire
