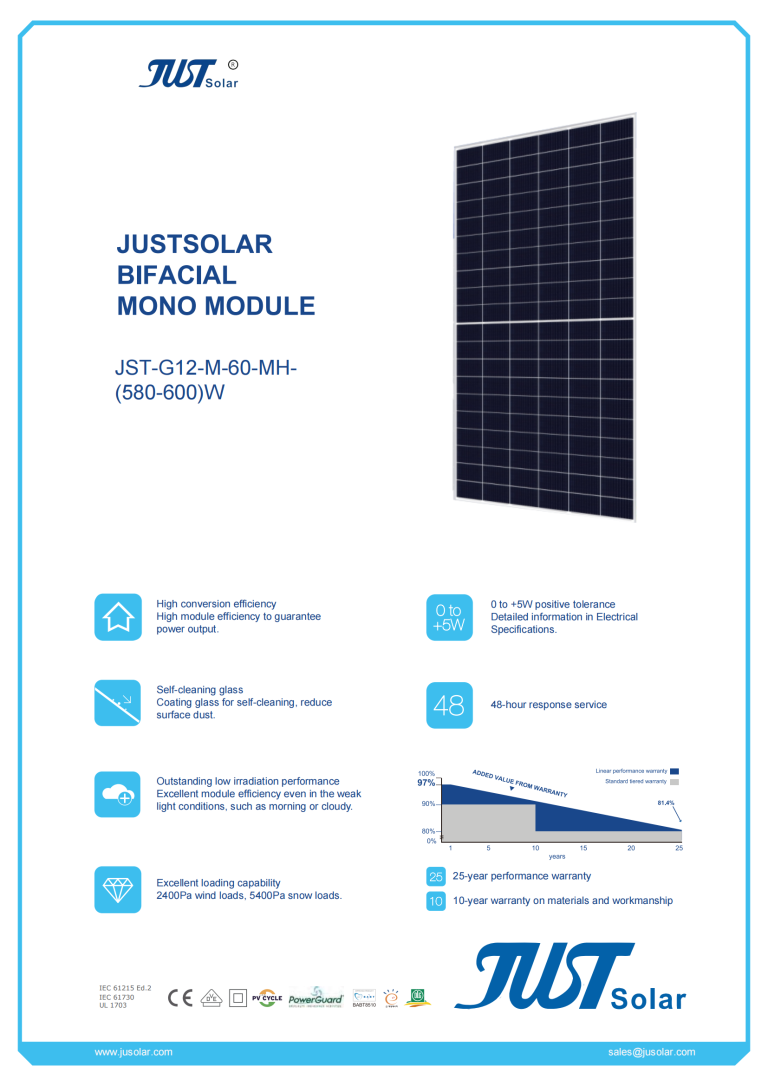

JST-G12-M-60-MH- (580-600)W Bifacial

JST-G12-M-60-MH- (580-600)W Bifacial

High conversion efficiency
High module efficiency to guarantee
power output.

Self-cleaning glass
Coating glass for self-cleaning, reduce
surface dust.

Outstanding low irradiation performance
Excellent module efficiency even in the weak
light conditions, such as morning or cloudy.

Excellent loading capability
2400Pa wind loads, 5400Pa snow loads.

0 to +5W positive tolerance
Detailed information in Electrical
Specifications.

48-hour response service

Product Description

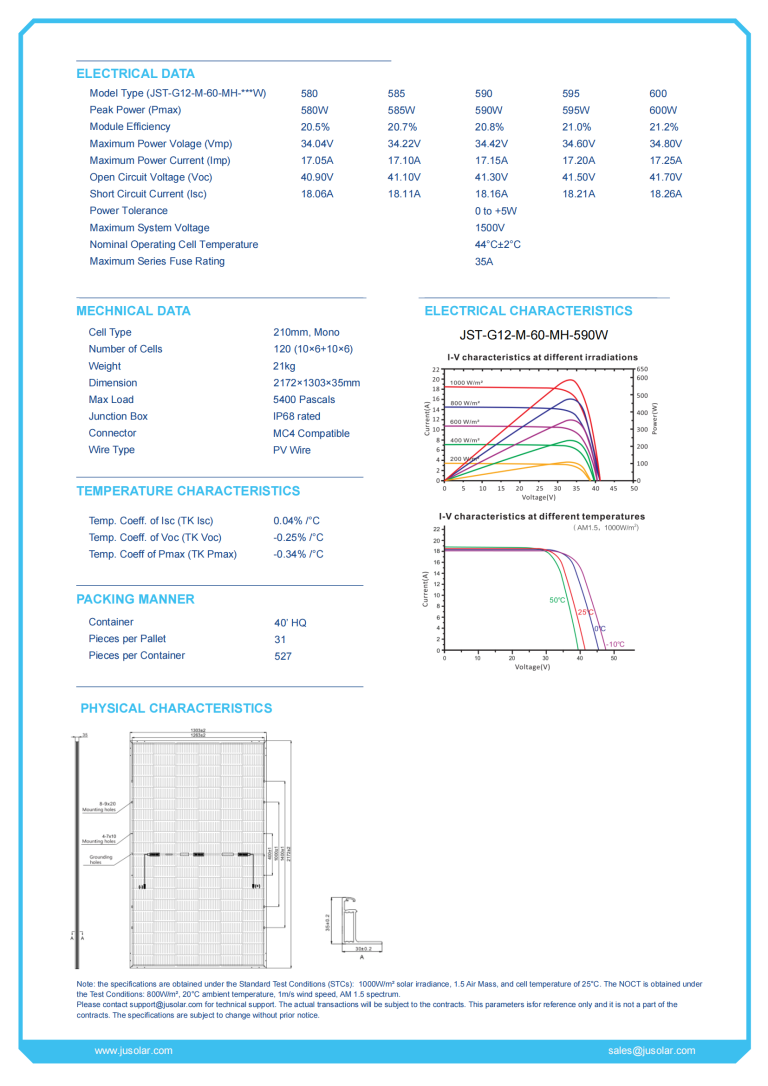

ELECTRICAL DATA

Model Type JST-G12-M-60-MH-
(580-600)W Bifacial
580 585 590 595 600
Peak Power (Pmax) 580W 585W 590W 595W 600W
Module Efficiency 20.50% 20.70% 20.80% 21.00% 21.20%
Maximum Power Volage (Vmp) 34.04V 34.22V 34.42V 34.60V 34.80V
Maximum Power Current (Imp) 17.05A 17.10A 17.15A 17.20A 17.25A
Open Circuit Voltage (Voc) 40.90V 41.10V 41.30V 41.50V 41.70V
Short Circuit Current (Isc) 18.06A 18.11A 18.16A 18.21A 18.26A
Power Tolerance 0 to +5W
Maximum System Voltage 1500V
Nominal Operating Cell Temperature 44°C±2°C
Maximum Series Fuse Rating 35A

MECHNICAL DATA

Cell Type 210mm, Mono
Number of Cells 120 (10×6+10×6)
Weight 35kg
Dimension 2172×1303×35mm
Max Load 5400 Pascals
Junction Box IP68 rated
Connector MC4 Compatible
Wire Type PV Wire
