4000S~6000S-5HP~30HP

4000S~6000S-5HP~30HP

Residential Single-phase Energy Storage System Just Series

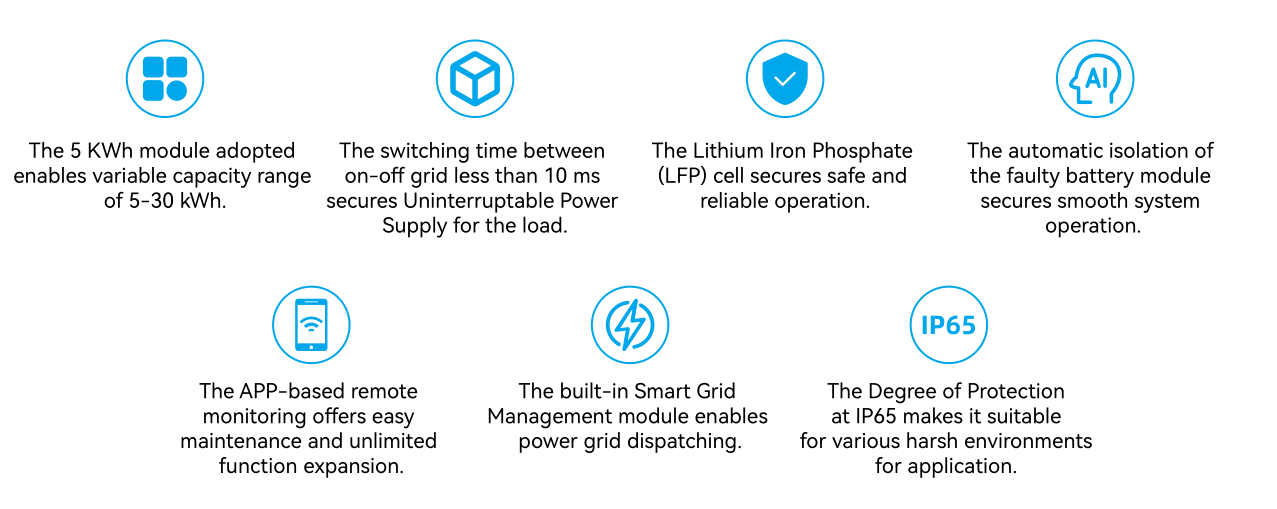

Product Description

4000S~6000S-5HP~30HP插图

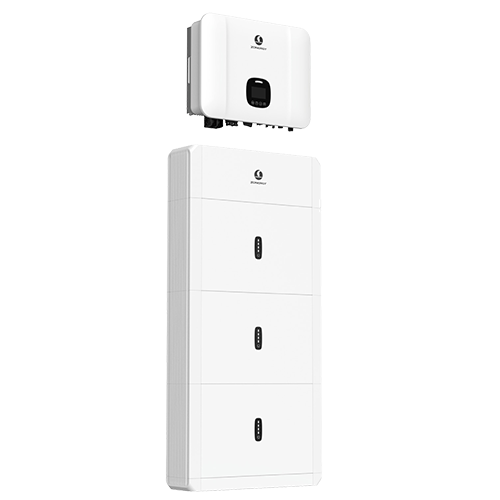

4000S~6000S-5HP~30HP插图1







System Specification
Nominal Output Power 4000 W / 5000 W / 6000 W
Capacity Range 5.12~30.72 kWh
Usable Capacity Range 4.6~27.65 kWh
Battery Chemistry LFP (LiFePO4)
IP Protection IP65 (Outdoor)
Warranty 5 Year Product Warranty, 10 Year Performance Warranty



Inverter Technical Specification
Model Venus 4000-S1 / Venus 5000-S1 / Venus 6000-S1
Phase Single Phase
Max. PV Input Voltage 600 V
MPPT Voltage Range 100 V~550 V
Max. PV Input Current 13 A / 13 A
Max. PV Input Power 6000 W / 7500 W / 9000 W
Max. MPPT Short-circuit Current 18 A /18 A
Number of Independent MPPT 2
Start-up Voltage Range 120 V
Max. Charging/Discharging Current 80 A / 100 A / 100 A
Max. Charging/Discharging Power 4000 W / 5000 W / 6000 W
Nominal Output Voltage on Grid 220 V,230 V,240 V (comply with local regulations)
Output Voltage Range on Grid 180 ~ 276 V
Rated Grid Output Frequency on Grid 50 Hz/60 Hz
Max.AC output Power 4000 W / 5000 W / 6000 W
Nominal AC Output Voltage 230 V
Communication CAN2.0/RS485, Wifi/GPRS(optional)
Display LCD & APP
Dimension(W*H*D) mm 540 x 450 x185



Battery Technical Specification
Module Model Limestone 5H-P Limestone 10H-P Limestone 15H-P Limestone 20H-P Limestone 25H-P Limestone 30H-P
Module Capacity 5.12 kWh 10.24 kWh 15.35 kWh 20.48 kWh 25.64 kWh 30.72 kWh
Usable Capacity 4.6 kWh 9.21 kWh 13.81 kWh 18.43 kWh 23.04 kWh 27.65 kWh
Nominal Voltage 51.2 V
Max. Charging/Discharging Power 2.5 kW 5 kW 5 kW 5 kW 5 kW 5 kW
Operating Temperature Range -20 ~ +50 °C
Dimension(W*H*D) mm 650 x 620 x 180 650 x 980 x 180 650 x 1340 x 180 650 x 980 x 180

650 x  +  x  180

980

650 x 1340 x 180

650 x  +  x  180

980

650 x 1340 x 180

650 x   +   x  180

1340

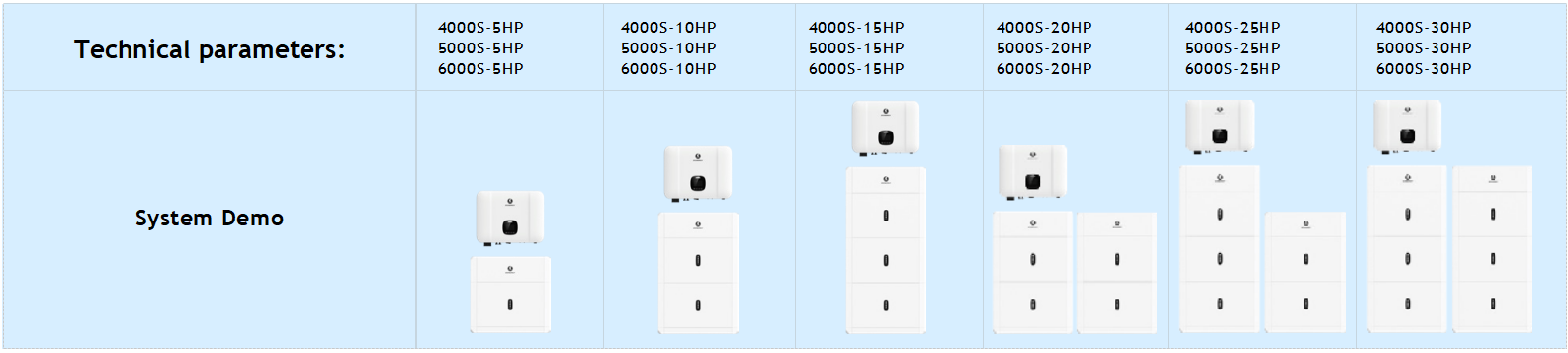

4000S~6000S-5HP~30HP插图2
